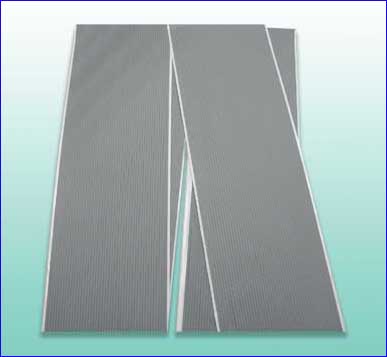

KE931+PET,Silicone Spacer

Silicone Spacer

Features&Benefits:

- Material:KE931+PET(mylar)
- Color Option:Grey,Black,custom colors available.
- Coefficient of friction:3U,10U,18U
- Used for shadeing,cushion,gasket,spacer for LCD module,TFT-LCD,LED module,etc.
- Electrical insulating
- Strong wet/dust-out in the surface
- Shockproof

Typical Application Includes:

1.LCD TV assemble
2.Pre-applied to BLU and LCD module,Back light module,plastic housing
3.Monitors,mobile phones,displays

Thickness Available:

0.1-2.0,3.0mm

Configurations:

1.Roll Form:300mmX50M.
2.With Justape,3M/NITTO Tape
3.Die-cutted into any size at request

Typical Properties
Property Unit Metric Value Test Method
Color *** Black,Grey Visual
Hardness(Silicone) Shore A 40±5 ASTM D2240
Elongation at break % 85  ISO527-1 Amd.1-2005
 Tensile Strength  Mpa  21.4  ISO527-1 Amd.1-2005
 Max. Force  N 260.1  ISO527-1 Amd.1-2005
 Breakdown Voltage  KV/mm  >20  IEC:60243-1:1998
 Resistivity  Ω/sq  2.9x1013  ANSI/ESD STM11.11-2001
 Continuous Use Temp.  ℃  -30-160  EN344
 Relative Humidity  %  15-98  ***
 Coefficient of Friction  u  0.58-0.78  ASTM D5183
