Features&Benefits:

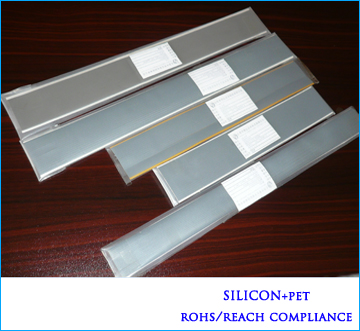

- Material:KE961+PET(mylar)
- Color Option:Grey,Black,custom colors available.
- Coefficient of friction:3U,10U,18U
- Used for shadeing,cushion,gasket,spacer for LCD module,TFT-LCD,LED module,etc.
- Electrical insulating
- Strong wet/dust-out in the surface
- Shockproof
Typical Application Includes:
1.LCD TV assemble
2.Pre-applied to BLU and LCD module,Back light module,plastic housing
3.Monitors,mobile phones,displays
Thickness Available:
0.1-2.0,3.0mm
Configurations:
1.Roll Form:300mmX50M.
2.With Justape,3M/NITTO Tape
3.Die-cutted into any size at request
Property | Unit | Metric Value | Test Method |
Color | *** | Black,Grey | Visual |
Hardness(Silicone) | Shore A | 40±5 | ASTM D2240 |
Elongation at break | % | >80 | ISO527-1 Amd.1-2005 |
Tensile Strength | Mpa | 10.1 | ISO527-1 Amd.1-2005 |
Max. Force | N | 252.4 | ISO527-1 Amd.1-2005 |
Breakdown Voltage | KV/mm | >20 | IEC:60243-1:1998 |
Resistivity | Ω/sq | 4.1x1013 | ANSI/ESD STM11.11-2001 |
Continuous Use Temp. | ℃ | -30-160 | EN344 |
Relative Humidity | % | 15-98 | *** |
Coefficient of Friction | u | 1.7-1.9 | ASTM D5183 |
